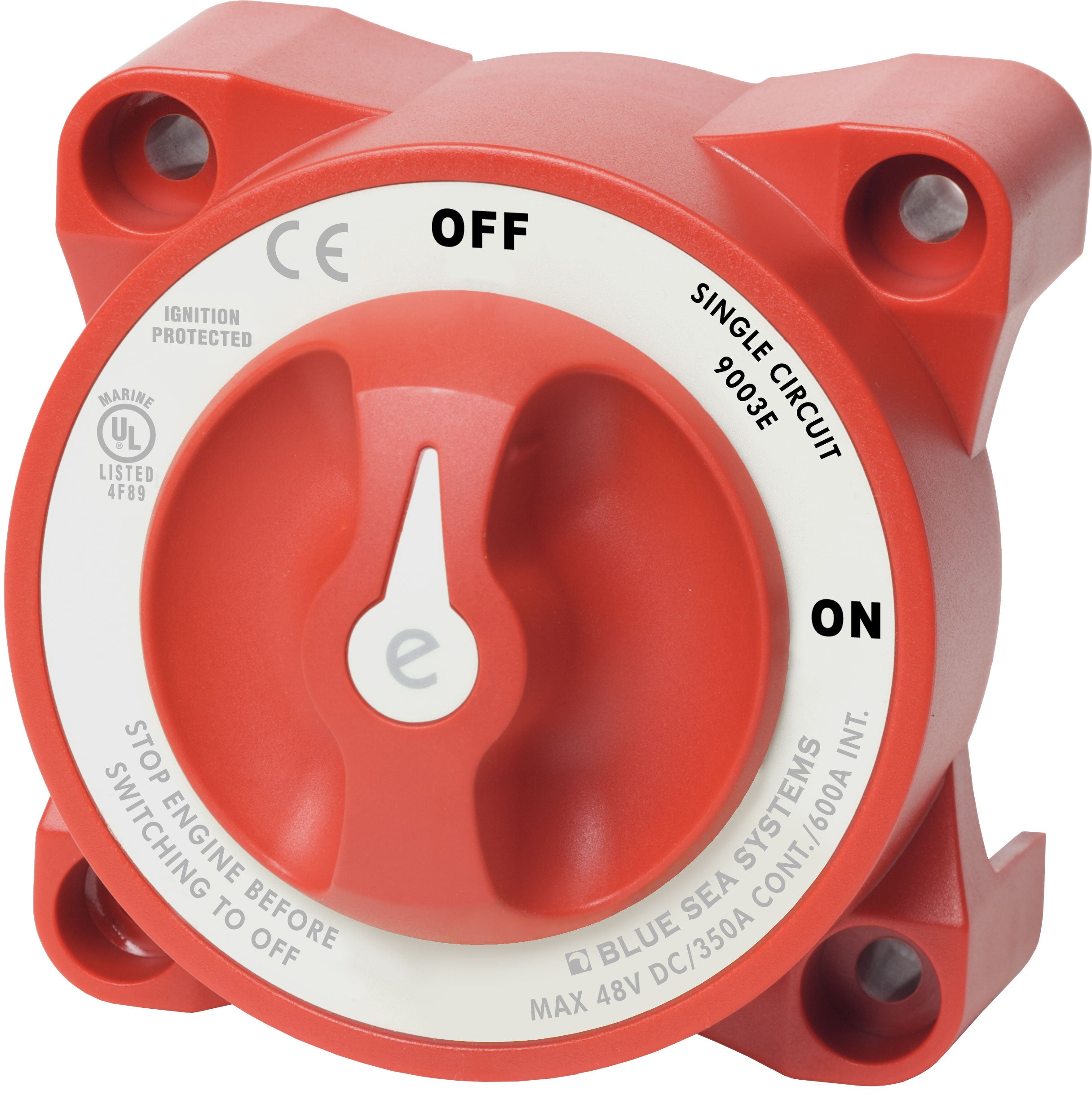

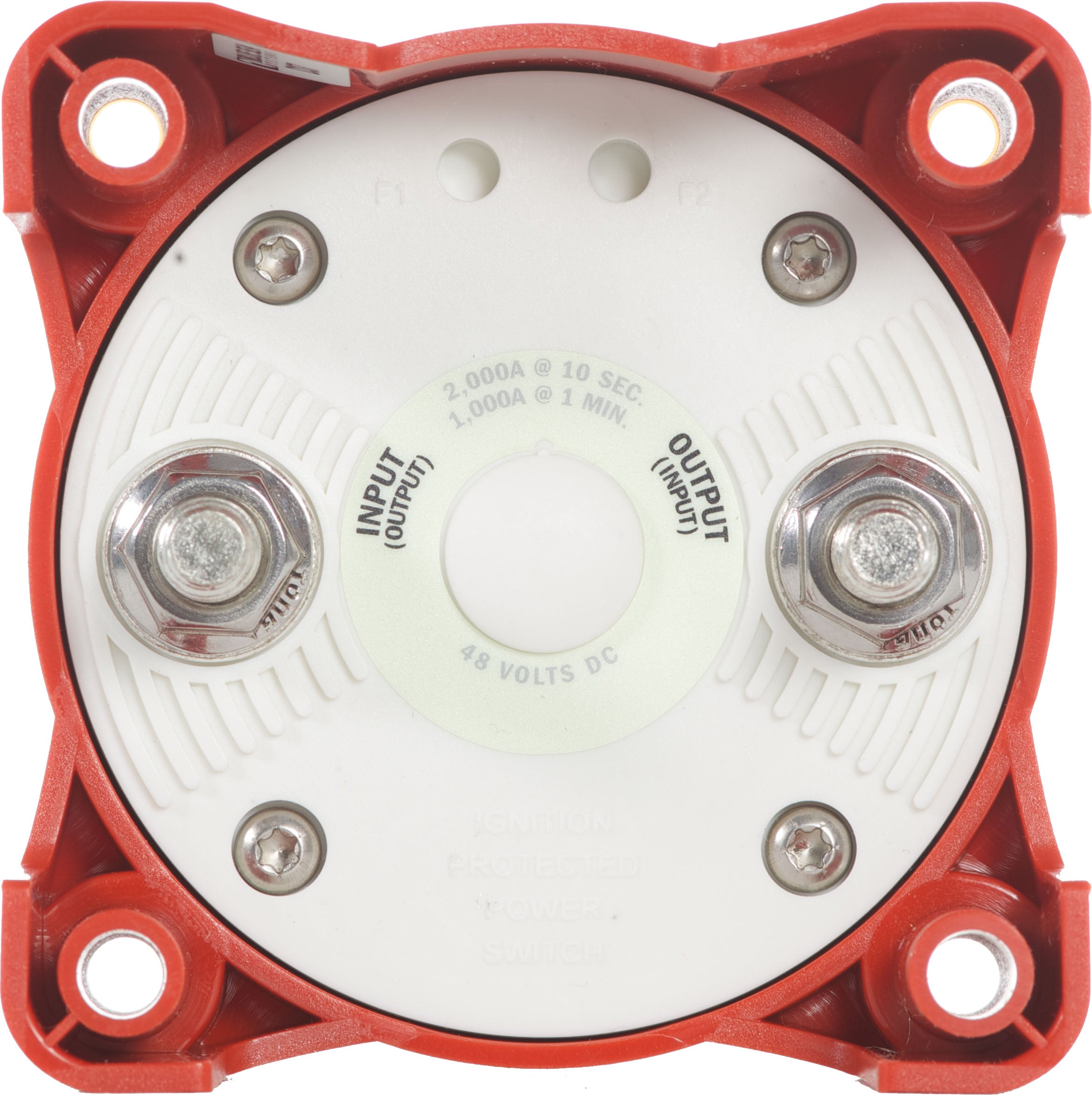

Blue Sea E-Series Battery Switch On-Off
Sale price
$43.99 USD
Regular price
$59.99 USD
Description
Switches a single battery to a single load group
Key Features
- 350 Amps continuous rating for inboard gasoline or diesel engines.
- Tin-plated copper studs for maximum conductivity and corrosion resistance
- Accepts up to 4/0 AWG battery cables
- Studs accepts 3/8 (M10) ring terminals
- 7/8 in (22mm) stud length accepts multiple cable terminals
- Blue Sea Systems one-piece terminal stud design never loosens over time
- Fits most Perko and Guest low amperage battery switch hole patterns
- Case design allows surface or rear panel mounting
- Tactile indicator conveys knob position by feel
- Waterproof - rated IP66 from water projected in powerful jets
- Ignition protected-safe for installation aboard gasoline powered boats
- Make-before-break contact design allows switching without power interruption
Specifications
| Color | Red |
| Switch Positions | 2 |
| Battery Combine | No |
| Alternator Field Disconnect | No |
| Maximum Voltage | 48V DC |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Continuous Rating | 350A |
| Intermittent Rating | 600A (5 min) |
| Cranking Rating 30 sec | 1200A per circuit |
| Battery Inputs | 1 |
| Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
| Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
| Mounting Holes | Accept 1/4 in (M6) Screw |
| Stud Material | Tinned Copper |
| Terminal Stud Size | 3/8 in - 16 (M10) |
California Prop 65 Warning: Cancer and Reproductive Harm. For more information visit P65Warnings.ca.gov.
