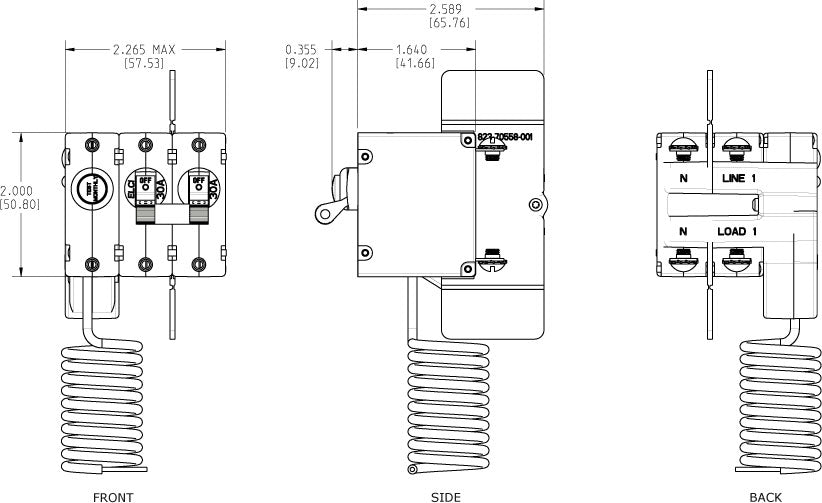

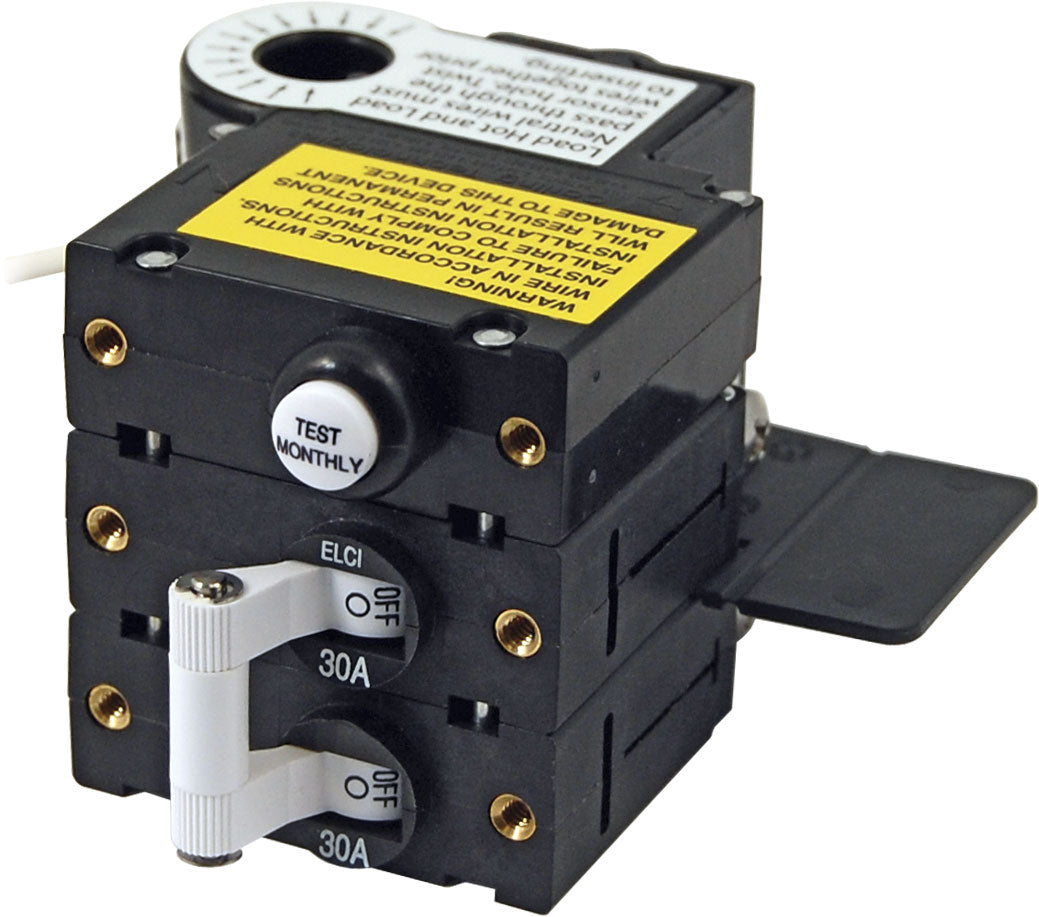

Blue Sea A-Series ELCI 30A 120v AC Double Pole Main Circuit Breaker
Sale price
$408.99 USD
Regular price
$544.99 USD
Key Features
- Trips on short circuit, overload, or leakage to ground
- Front panel mount-installed in a power distribution panel
Specifications
| Actuator Style | Toggle |
| Poles | 2 |
| Ignition Protected | Yes |
| Maximum Voltage | 240V AC 120V AC per pole |
| Circuit Breaker Type | Magnetic Hydraulic - trip free |
| nterrupt Capacity | 5000A |
| Minimum Operating Temperature | -35 deg C |
| Maximum Operating Temperature | v |
| Leakage Trip Amps | 30mA |
| Mounting Screw | #6-32 Stainless Steel |
| Mounting Screw Torque | 6 in-lb (0.68 Nm) |
