Key Features
- ActiveTarget Live sonar and Active Imaging compatible: Live Sonar: Supports sonar accessories such as ActiveTarget and Active Imaging 3-in-1 Sonar
- Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays

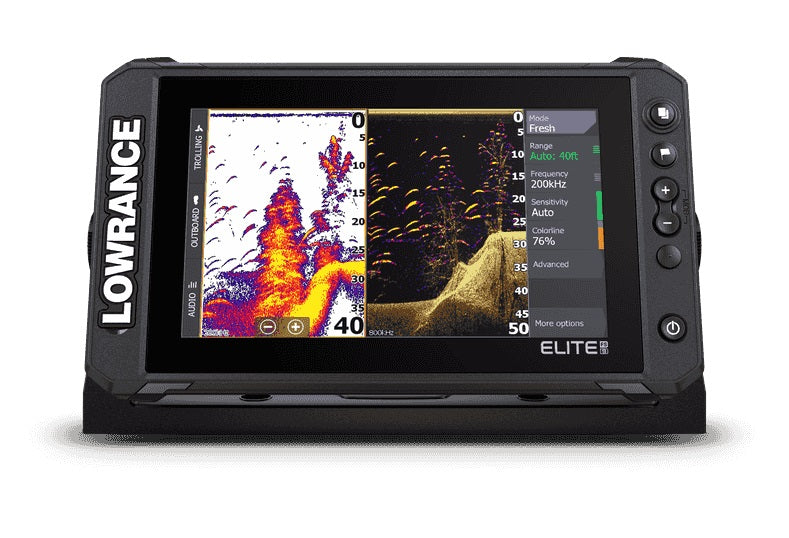

- High Resolution Multi-touch screen
- Preloaded with C-MAP Contour + charts (AMER,APAC)
- NMEA 2000: Support and control NMEA 2000 devices
- Halo Radar: Drive Lowrance radar domes directly
Specifications
| Storage temperature | -20 degC to +60 degC (4 degF to 140 degF) |
| Waterproof rating | IPX6 and IPX7 |
| Supply voltage | 12 V DC (10 - 17 V DC min - max) |
| Recommended fuse rating | 3 A |
| Power consumption (maximum) | 28 W (2 A at 13.8 V DC) |
| Resolution | 800 x 480 pixels |
| Viewing angles in degrees | 50 deg top, 60 deg bottom, 70 deg left and right |
| Brightness | > 1200 nits |
| Touch screen | Multitouch |
| Weight (display only) | 1.2 kg (2.7 lbs.) |
| Compass Safe Distance | 0.5 m (1.6 ft.) |

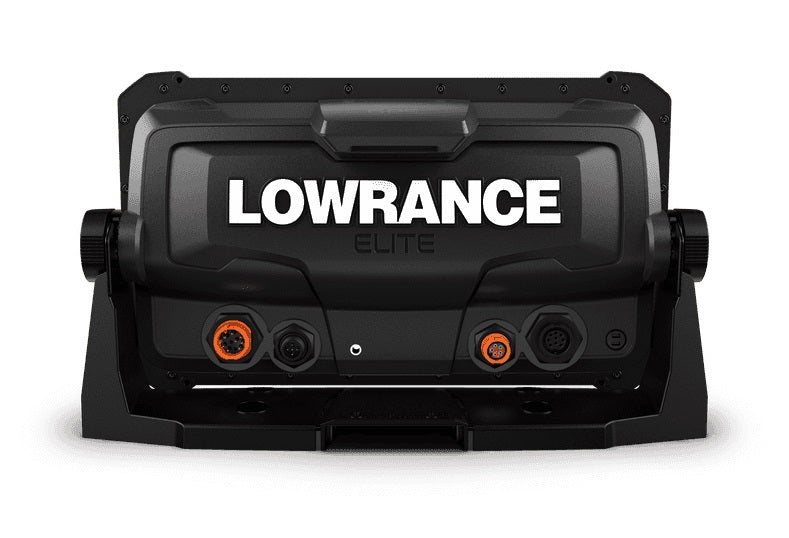

| NMEA 2000(R) | 1 port (Micro-C connector) |
| Data card reader | 1x slot (microSD, SDXC) |
| Ethernet | 1 port, (5-pin Ethernet connector, 100Base-T) |
| Sonar | 1 port (9-pin connector) |
| WiFI Internal | 802.11b/g/n : No wireless networking between units |
| Bluetooth(R) | 4.0 with support for Bluetooth Classic |
| GPS | 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS |
What's in the Box
- Elite FS 9 Display
- Sun cover
- Mouning bracket and knobs
- Power cable
- Fuse and fuse holder
