Description

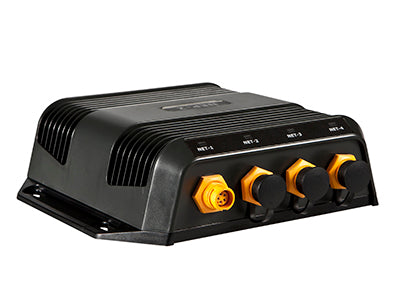

NEP-2 is a plug-and-play powered hub for sharing sonar, StructureScanTM Sonar Imaging, Broadband 3G Radar or HD Digital Radar and LWX-1 SIRIUS(R) Satellite Weather data between multiple HDS(R) displays across an onboard network.
Also compatible with 2007 and later LCX, LMS and GlobalMap(R) models with 5-pin Ethernet connector for networking multiple displays.
Fully waterproof and resists corrosive marine environments. Unused connector ports feature waterproof caps for added protection for future expansion.
TECHNICAL / ENVIRONMENTAL POWERKey Features
- Waterproof, powered hub for wideband Ethernet data sharing
- For HDS and add-on module networking and earlier Lowrance models with 5-pin connector
- Transmits sonar graphing display/control on HDS-M series chartplotters when networked with HDS sonar displays
- Connects up to five compatible displays and Ethernet modules
- Advanced VHF radio band noise rejection
Specifications
| Waterproof Standard | IPX7 standards |
| Width | 8.3 in \ 210 mm |
| Height | 2.3 in \ 57.6 mm |
| Depth | 7.4 in \ 188 mm |
| Weight | 1.82 lbs \ 0.825 kg |
| Operating Temperature | -20 deg to +167 deg F (-28 deg to +75 deg C) |
