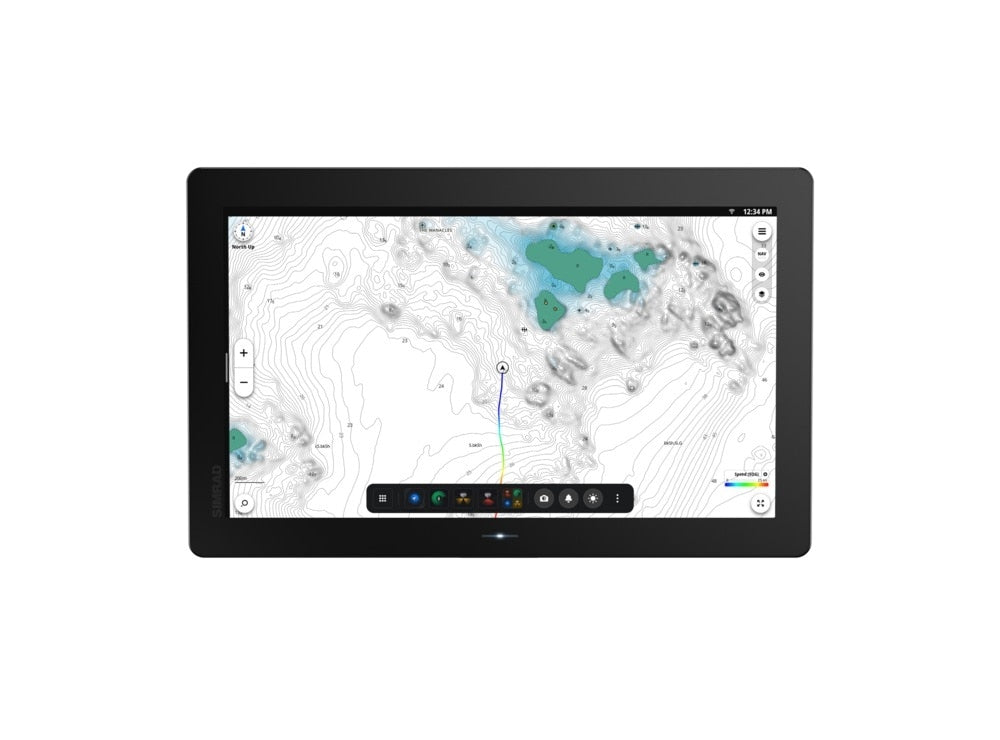

Simrad NSO 4-16 NEON OS, 16-inch Glass-bridge multi-function display. Qualcomm 8-core processor. Full HD touchscreen. Gigabit Ethernet, WIFI, Video In and Out. Next-generation C-MAP DISCOVER X chart included
Description
Refreshed Design: Built for the worlds most commanding vessels, NSO 4 puts a premium on design. Gently curved edges bring an instantly premium feel to the dash. A truly glass-to-edge design keeps things clean and seamless for years to come. And a new power light gives instant visibility over your chartplotters status.
Superior Sonar Compatibility: When paired with sonar modules, NSO 4 supports use of multiple transducers, unlocking unbeatable underwater views. Make the most of the additional screen real estate with the ability to track multiple depths and angles around your vessel.
Stunning C-MAP Charts: Our biggest, brightest display is the perfect match for C-MAPs latest charts. NSO 4 supports DISCOVER X and REVEAL X, bringing vivid, clutter-free presentations and instant, lag-free performance. The X-Chart Manager also lets you update charts directly on the device via internet connection. The ability to select custom areas is ideal for those who frequently explore new waters.
Chart Flexibility: Compatibility with others like StrikeLines and CMOR Mapping provide complete flexibility. NSO 4 even lets you run multiple charts simultaneously for the ultimate navigation experience.
More Storage: An expanded hard drive lets you store more waypoints, routes, and tracks than ever.
Mercury SmartCraft Connect: Nobody connects better with Mercury than we do. Direct integration with Mercury SmartCraft Connect gives you full visibility and control over your engines and fuel.
SiriusXM: Integration with the SiriusXM WM-4 Satellite Receiver brings live weather updates, radar, music, and fish mapping, to know where fish are biting.
FishCast powered by ROFFS: Simrad is the worlds only chartplotter brand to offer full integration with FishCast powered by ROFFS. Dial into world-class angling forecasts directly on your display.
Cruising Controls: Designed to be a complete command center, NSO 4 integrates with everything from audio to lighting,
Key Features
- Premium glass-to-edge design
- Lightning fast 8-core processor
- Latest NEON operating system
- Support for Active Imaging & Active Imaging HD (requires S3100H)
- Includes C-MAP DISCOVER X Chart
- Support for C-MAP X-gen charts and others
- Simrad RECON, Rhodan and Motorguide Trolling Motor Compatible
- Compatible with Simrad suite: S3100 & S5100 sonar modules, HALO radar, and more
- Support for Mercury, CZone, SiriusXM, and more
- Our brightest ever full HD touchscreen
- New rear-mount installation system
- New 4-way camera split
Specifications
| Manouevres / Turn Patterns | U-Turn, C-Turn, Spiral, S-Turn, Square, Zig-zag, Depth |
| Steering Modes | Heading Hold, No Drift, Follow-up, Non-Follow-up, Nav |
| Ethernet | 4 ports (X-Coded M12 GbE) |
| NMEA 0183 | No. Use a converter such as 000-15939-001 NMEA 0183 - NMEA 2000 converter |
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
| PC Connectivity | No |
| Video | Video In port (up to 1920 x 1080P), Video out port (up to 1920 x 1080P). Video limited distribution to other NSO 4 units via Ethernet. Cameras: IPCAM-1, FLIR 232/300 series. ONVIF IP Cameras |
| WiFi | Wi-Fi 5, 5.0 and 2.4GHz Compatible |
| Backlight Color | White |
| Resolution | 1920 x 1080 px |
| Screen Brightness | 1200 nits |
| Size and Type | 16" SolarMax IPS Touchscreen display for wide viewing angles, extreme clarity and sunlight viewability with polarized sunglasses |
| Viewing Angles | 80 top / bottom, 80 left / right. (typical values at contrast ratio = 10) |
| Power Consumption, max. | 33 W |
| Recommended Fuse Rating | 5 A |
| Supply Voltage | 12/24 V DC (10 - 31.2 V DC min - max) |
| Operating Temperature Range | -15C to 55C (5F to 131F) |
| Storage Temperature Range | -20C to 60C (-4F to 140F) |
| Waterproof rating | IPX6 and IPX7 |
| AIS | Receive AIS data over NMEA 2000 |
| Autopilot | NAC-1, NAC-2, NAC3, NAC-D |
| Cartography included | Discover X chart card of North America |
| Cartography supported | C-MAP Discover X, C-MAP Reveal X. Third party charts CMOR, StikeLines (check with provider for available content) |
| External Storage | 2x microSD, Class 10 or higher. Up to 256GB, 1 x USB port. Formats: FAT 32, EXT4, ExFAT or NTFS |
| GPS | External GPS antenna required |
| Internal Storage | 128 GB, > 64 GB User Data |
| Multimedia | Via Video In port |
| Radar (inc. compatibility) | Halo dome radars, Halo open array radars, 3G/4G, 10/25 kW HD Radars |
| Sonar (inc. compatibility) | Network Sonar modules S3100, S5100. Transducers connected to NSS 4, NSX over Ethernet |
| Weather | Sirius XM via WM4 module, FishCast powered by ROFFS (USA only) |
| Waypoints, Routes, Tracks | 10,000 waypoints: 75,000 trackpoints: 75 saved tracks: 125 routes. Note: NSS/NSO evo2/3 maximums will apply if on the same network |
| Compass Safe Distance - Metric, imperial | 65 cm (2.13 ft) No Suncover |
| Dimensions (W x H x D) | 391 mm (15.4 in) x 243.95 mm (9.6 in) x 78.79 mm (3.10 in) |
| Weight | 4.23 Kg (9.23 lbs) |
| Warranty Period | 2 Years |
| Interface | Full touchscreen, Optional keypad (OP55 wired controller) |
