Description

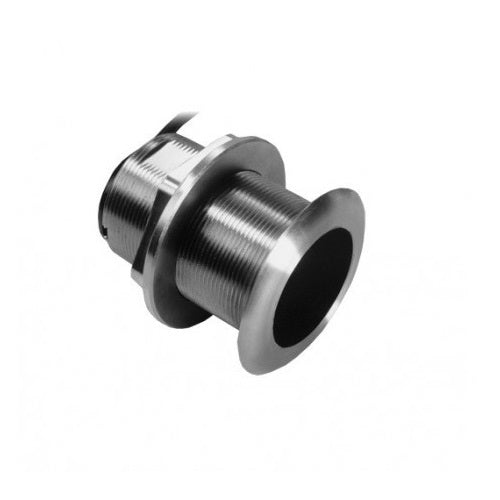

The SS60 is a stainless steel, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Key Features
- Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.
- Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
- Provides extremely accurate data.
- The 0 deg tilt is ideal for boats with a 0 deg to 14 deg hull deadrise.
- The low profile housing minimises drag with just 5mm extending outside of the hull.
- Easily connect to NSSevo3, Lowrance HDS G3
Specifications
| Power rating | 600 watts |
| Speed sensor | No |
| Temperature sensor | Yes |
| Mounting style | Thru Hull |
| Elements | 1 |
| Beamwidth @ -3db | 45 (50 kHz) 12 (200 kHz) |
| Cable length | 10 meters |
| Connector | 9-pin black |
