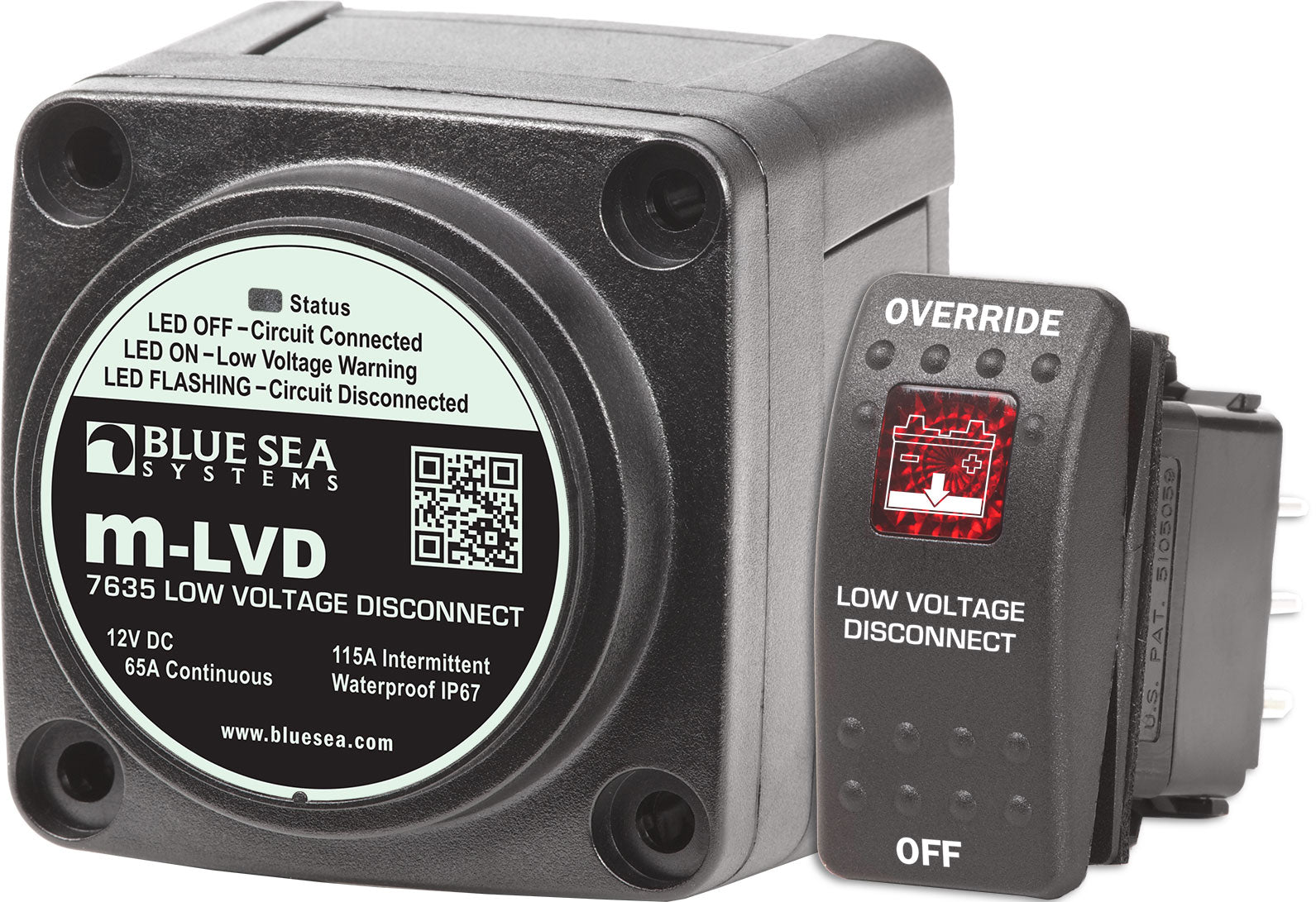

Blue Sea m-LVD Low Voltage Disconnect 12vDC
Sale price
$95.99 USD
Regular price
$140.99 USD
Description
Senses low battery voltage and automatically disconnects devices to save power for starting or to preserve battery life
A dead battery is one of the most common reasons for a tow. Don't get stranded with a dead battery. The m-LVD senses low battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life. The m-LVD is ideal for any single battery boat or vehicle that wants to avoid getting stranded with a dead battery.
Key Features
- Status light in both m-LVD and Remote Control Switch provides visual warning of low voltage state prior to disconnect
- Alarm output available for audible warning of low voltage state prior to disconnect (optional alarm required)
Specifications
| Amperage Operating Current | 95mA (Connected) 4mA (Open) |
| Terminal Stud Torque | 60 in-lb (6.78 Nm) |
| Continuous Rating | 65A |
| Intermittent Rating | 115A (5 Min) |
| Maximum Cable Size | 1/0 AWG (50mm2) |
| Stud Material | Tinned Brass |
| Terminal Stud Length | 7/16 in (11.11 mm) |
| 7/16 in (11.11 mm) | 1/4 - 20 (M6) |
What's in the Box
- M-LVD Low Voltage Disconnect
- m-LVD Switch
California Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information visit P65Warnings.ca.gov.
